Products
Replacement batteries

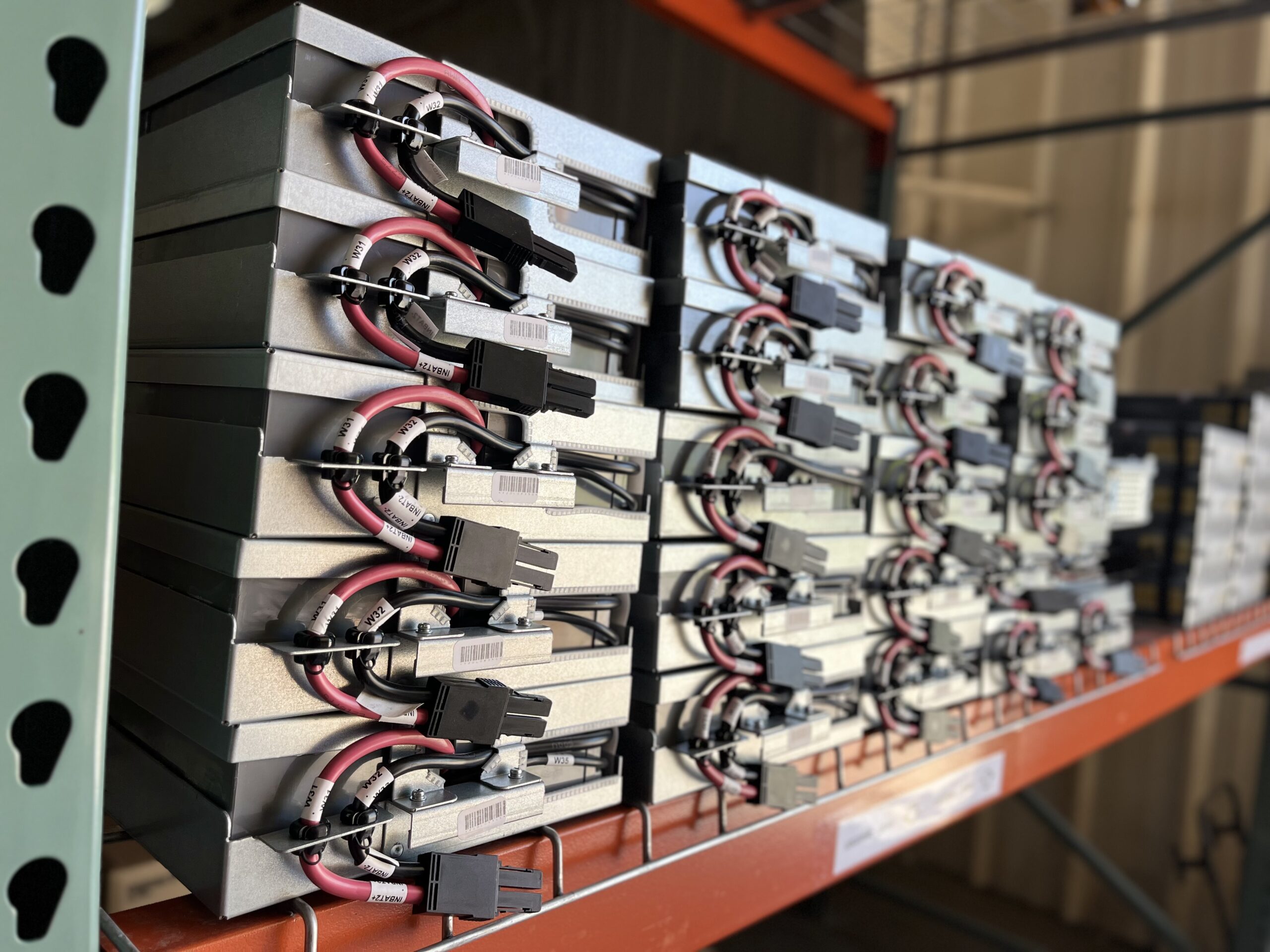

Cartridges and battery trays for the PowerStar UPS line, with NSNs where assigned. Dimensions are in inches, weight in pounds.
Match a cartridge to your unit
Every UPS family page lists the battery cartridge it takes. If you only have the UPS serial or NSN, send it over — we'll identify the right pack from the build record.
33 models
| Part No. | NSN | VDC | Form factor | Height | Depth | Width | Weight |
|---|---|---|---|---|---|---|---|
| PSRBC17 | 6140-01-546-9413 | — | CARTIRIDGE | — | — | — | — |
| PSRBC7 | 6140-01-481-4471 | 24 | CARTIRIDGE | 6.8 | 7.1 | 6 | 28.1 |
| PSRBC7H | 6140-01-576-4249 | 24 | CARTIRIDGE | 6.8 | 7.1 | 6 | 28.1 |
| PSRBC55 | 6140-01-562-8422 | 24 | CARTIRIDGE | 6.6 | 3 | 7.15 | 59 (28.5) |
| PSRBC55X | 6140-01-694-9187 | — | CARTIRIDGE | 6.6 | 3 | 7.15 | 59 (28.5) |
| PSRBC3105-2U | — | — | — | — | — | — | — |
| PSRBC3100-2U | — | — | — | — | — | — | — |
| PSRBC3155-2U | — | — | — | — | — | — | — |
| PSRBC3153H-2U | — | 48 | CARTIRIDGE | 3.9 | 6 | 2.5 | — |
| PSRBC3205RM2U | — | — | — | — | — | — | — |
| PSRBC3205RM2UH | — | — | — | — | — | — | — |
| PSRBC33 | — | — | — | — | — | — | — |
| PSNPX35FR | 6140-01-597-2684 | — | CARTIRIDGE | 3.8 | 7.8 | 12 | 42 |
| PSRBC3305-2U | — | — | — | — | — | — | — |
| PSRBC3305-2UH | — | — | — | — | — | — | — |
| PSRBC8H | 6140-01-512-9888 | 27 | CARTIRIDGE | 3.8 | 5.9 | 10.2 | 24 |
| PSRBC8HX | — | — | CARTIRIDGE | 3.8 | 5.9 | 10.2 | 24 |
| PSRBC8 | 6140-01-512-9887 | 27 | CARTIRIDGE | 3.8 | 5.9 | 10.2 | 24 |
| PSRBC133 | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC133H | — | — | CARTIRIDGE | — | — | — | — |
| PS6003RM2U18-BP-H | — | — | 2U BATTERY TRAY | — | — | — | 65 |
| PS6003RM2U18-BP | — | — | 2U BATTERY TRAY | — | — | — | — |
| PSRBC43 | 6140-01-550-4443 | — | CARTIRIDGE | 21 | 3 | 8.5 | 42 |
| PSRBC43H | 6140-01-550-8083 | — | CARTIRIDGE | 21 | 3 | 8.5 | 42 |
| PSRBC143 | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC143H | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC117 | 6140-01-618-7007 | — | CARTIRIDGE | — | — | — | — |
| PSRBC117H | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC6003RM2UXL | — | — | 2U BATTERY TRAY | — | — | — | — |
| PSRBC6003RM2UXLH | — | — | 2U BATTERY TRAY | — | — | — | — |
| PSRBC141 | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC152 | — | — | CARTIRIDGE | — | — | — | — |
| PSRBC140 | — | — | CARTIRIDGE | — | — | — | — |
No models match that search. Try a partial part number, or ask our team.
Tell us what the mission needs.
Send a part number, an NSN, or a description of the environment the unit has to survive. We quote custom configurations with no minimum order.
